Trail Setup - Web Applications

Setup easyTravel (Docker)

easyTravel Docker components are available from Dynatrace’s GitHub/Docker Hub.

Install docker engine (Follow official guidelines) Example installation

sudo apt remove -y docker.io docker-compose docker-compose-v2 docker-doc podman-docker containerd runc

sudo apt update
sudo apt install -y ca-certificates curl gnupg

sudo install -m 0755 -d /etc/apt/keyrings

curl -fsSL https://download.docker.com/linux/ubuntu/gpg \
 | sudo gpg --dearmor -o /etc/apt/keyrings/docker.gpg

sudo chmod a+r /etc/apt/keyrings/docker.gpg

sudo apt update

# Add docker repo
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.gpg] \
  https://download.docker.com/linux/ubuntu \
  $(. /etc/os-release && echo "$VERSION_CODENAME") stable" \
 | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null

sudo apt update

sudo apt install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

# Allow user to run docker (You can check using whoami).
sudo usermod -aG docker $USER
# Ex: sudo usermod -aG docker marellasunil
newgrp docker

• Create a folder for lab (Optional)

mkdir -p ~/dynatrace-lab/easytravel
cd ~/dynatrace-lab/easytravel
vi  docker-compose.yml

• Update as below

services:
  mongodb:
    image: dynatrace/easytravel-mongodb:latest
    container_name: easytravel-mongodb
    ports:
      - "27017:27017"

  backend:
    image: dynatrace/easytravel-backend:latest
    container_name: easytravel-backend
    ports:
      - "8080:8080"
    depends_on:
      - mongodb
    environment:
      - ET_DATABASE_LOCATION=mongodb:27017

  frontend:
    image: dynatrace/easytravel-frontend:latest
    container_name: easytravel-frontend
    ports:
      - "8079:8080"
    depends_on:
      - backend
    environment:
      - ET_BACKEND_URL=http://backend:8080

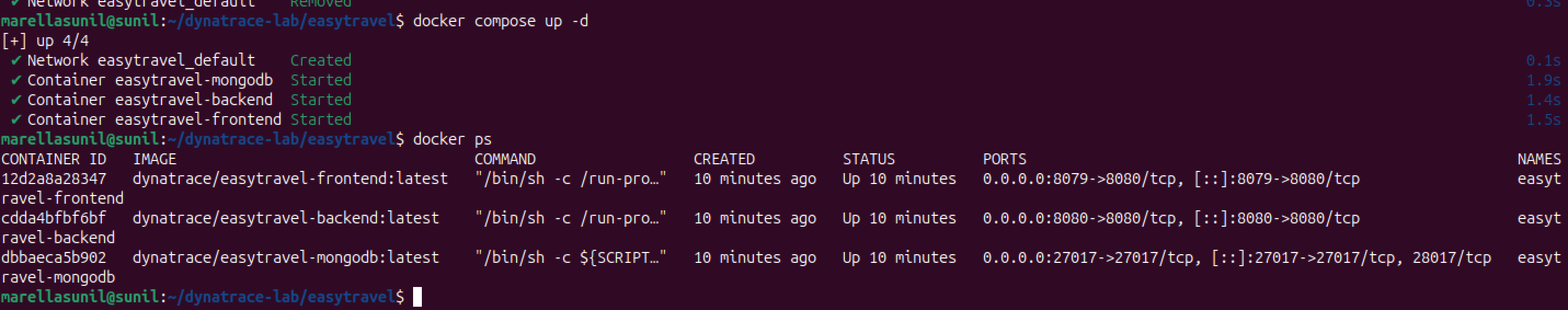

• Run docker compose

docker compose up -d
# List running containers
docker ps

• Open browser and check http://localhost:8079

Follow OneAgent setup as per previos labs.

Testing

Go to Dynatrace -> One agent -> Linux

1. Download one agent
2. verify signature
3. Install Oneagent as a privilaged user

Use below command:

/bin/sh Dynatrace-OneAgent-Linux-x86-1.xxx.xx.xxx-xxx.sh --set-monitoring-mode=fullstack --set-app-log-content-access=true

In case if you are installing latest/unsupported bversion you can skip OS Check using SKIP_OS_SUPPORT_CHECK=true

/bin/sh Dynatrace-OneAgent-Linux-x86-1.xxx.xx.xxx-xxx.sh --set-monitoring-mode=fullstack --set-app-log-content-access=true SKIP_OS_SUPPORT_CHECK=true

Generate traffic

while true; do
  curl -s http://localhost:8079/ > /dev/null
  sleep 2
done

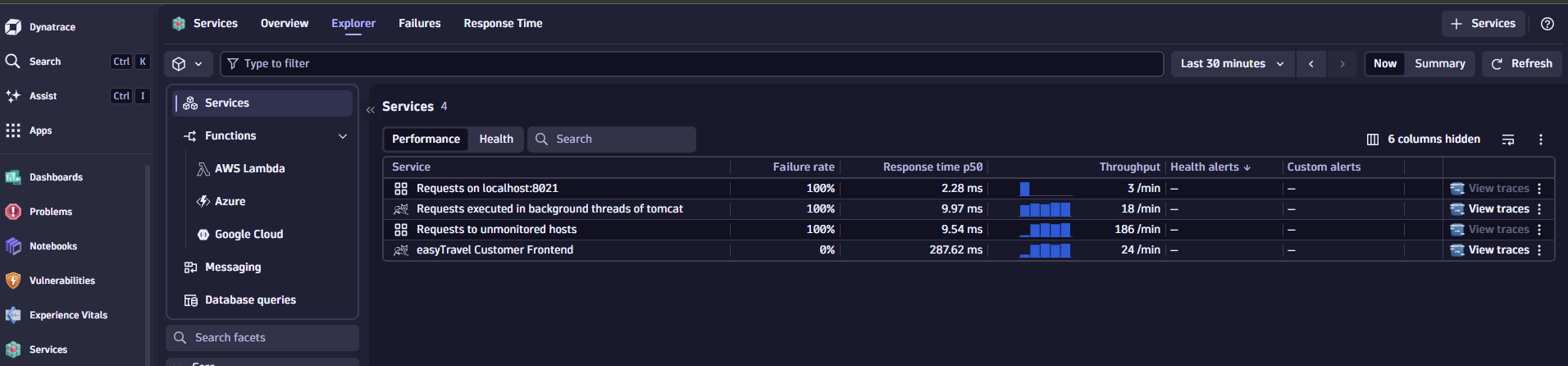

Verify in Dynatrace

---

Dynatrace : Main Page

---
