Lab Setup

Assuming you have Linux system & docker installed.

1. We are going to run node_exporter in the host machine (In my case I use fedora)
2. We run prometheus container

Installing node_exporter

1. Download and run node_exporter

wget https://github.com/prometheus/node_exporter/releases/download/v1.10.2/node_exporter-1.10.2.linux-amd64.tar.gz
tar xvfz node_exporter-1.10.2.linux-amd64.tar.gz
cd node_exporter-1.10.2.linux-amd64`
./node_exporter```

2. Create prometheus config files. for ex:

global:
  scrape_interval: 15s
  evaluation_interval: 15s

scrape_configs:

  - job_name: 'prometheus'
    static_configs:
      - targets: ['localhost:9090']

  - job_name: 'node-exporter'
    static_configs:
      - targets: ['host.docker.internal:9100']

3. Create docker volume

docker volume create prometheus-data

4. docker container to run prometheus server

docker run -d \
  --name prometheus \
  -p 9090:9090 \
  --add-host=host.docker.internal:host-gateway \
  -v /home/sunil/Desktop/Sunil/prometheus/prometheus.yml:/etc/prometheus/prometheus.yml \
  -v prometheus-data:/prometheus \
  prom/prometheus

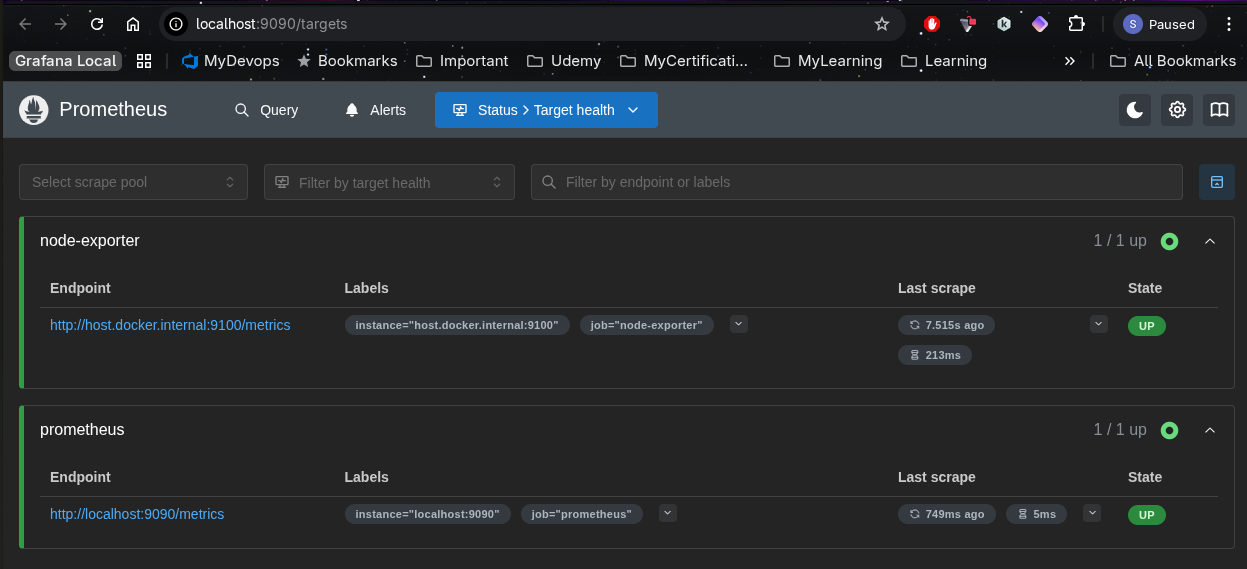

5. validate using the url

http://localhost:9090/targets

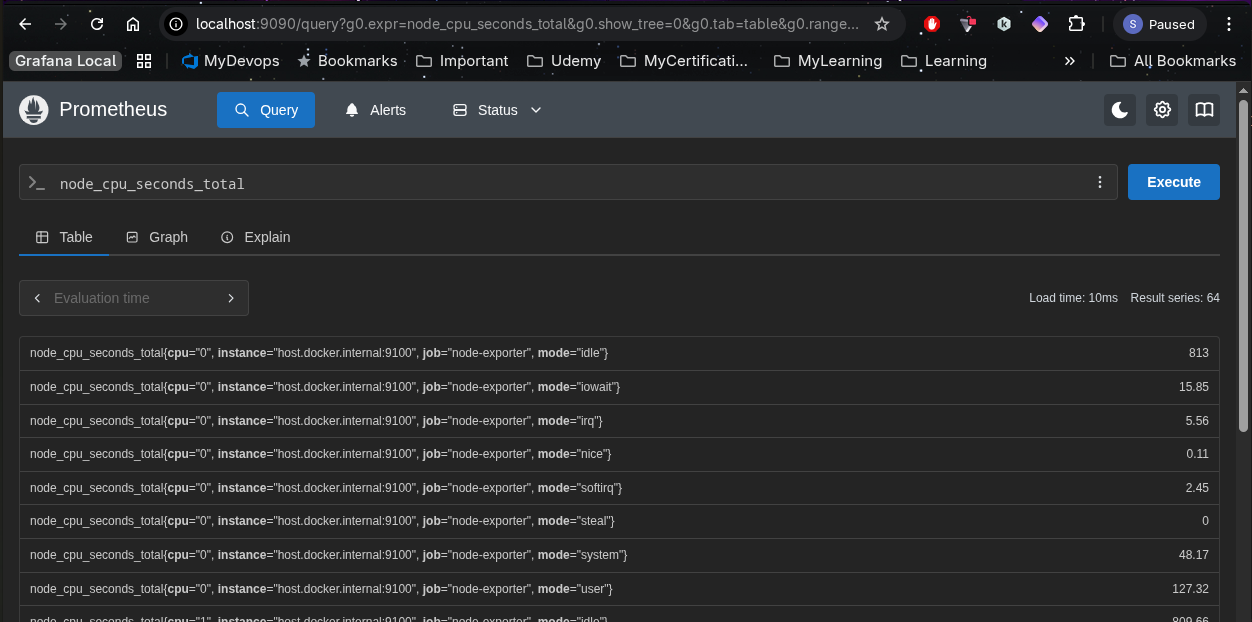

http://localhost:9090/query

6. check prometheus config using promtools

ex: promtool check config /etc/prometheus/prometheus.yml

---
